01 — CONCEPTUAL DESIGN
From sketch to CFD-ready surface.
We take a concept drawn by you and transform it into a CFD-compatible surface for concept approval and rapid feasibility studies. Using simplified models, we can quickly provide an initial draft geometry ready for a CFD study.
02 — GEOMETRY RECONSTRUCTION
Scans up to 300 m, accurate to 1 mm.

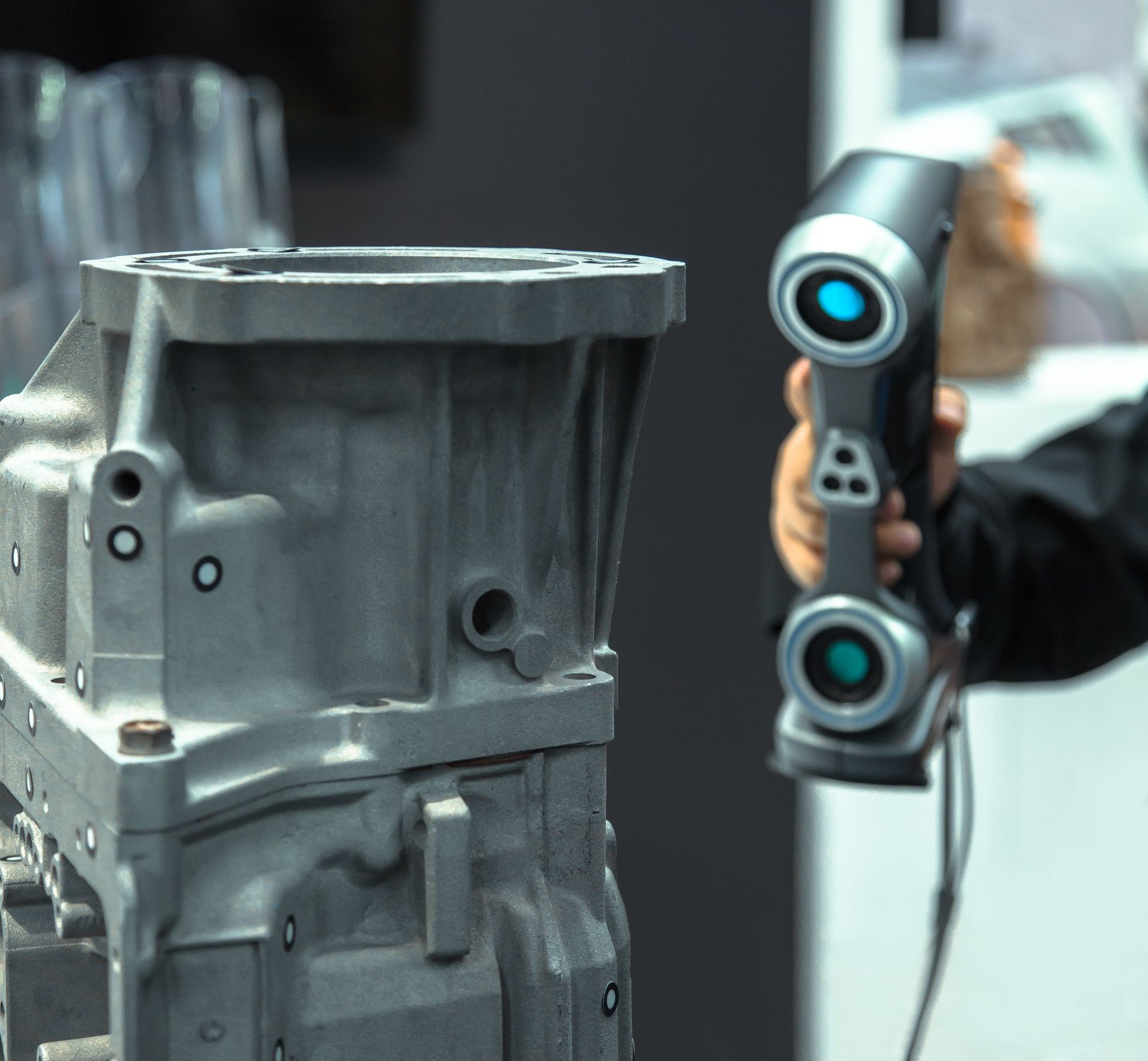

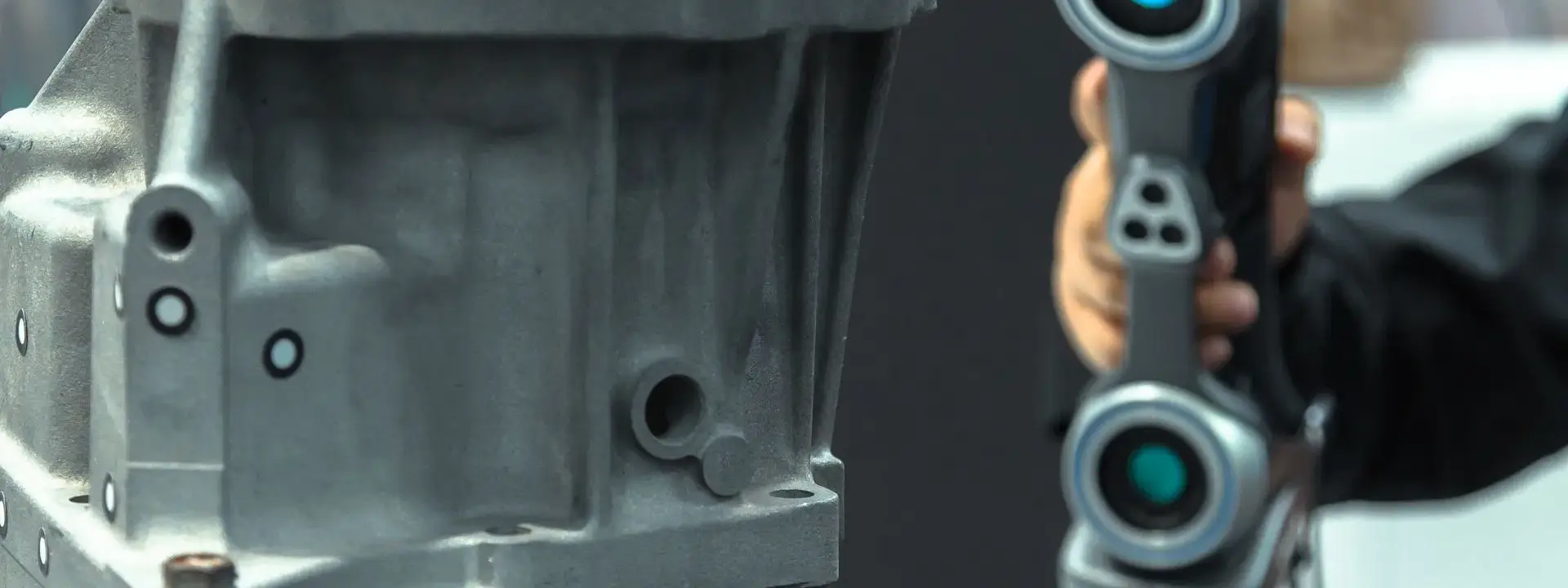

Using the latest 3D-scanning technology we scan and reconstruct objects and regions up to 300 metres, with accuracy within 1 mm. The resulting point cloud (STL) is digitised into an airtight surface ready for computational studies. Surface reconstruction can also be done from existing blueprints.
300 m
MAX SCAN RANGE
≤ 1 mm
ACCURACY
03 — RAPID PROTOTYPING
Solid components, quick iterations.
Any design we make can be transformed into a solid component suitable for wind tunnel testing. Quick design and production turnaround lets us deliver rapid iteration changes.
